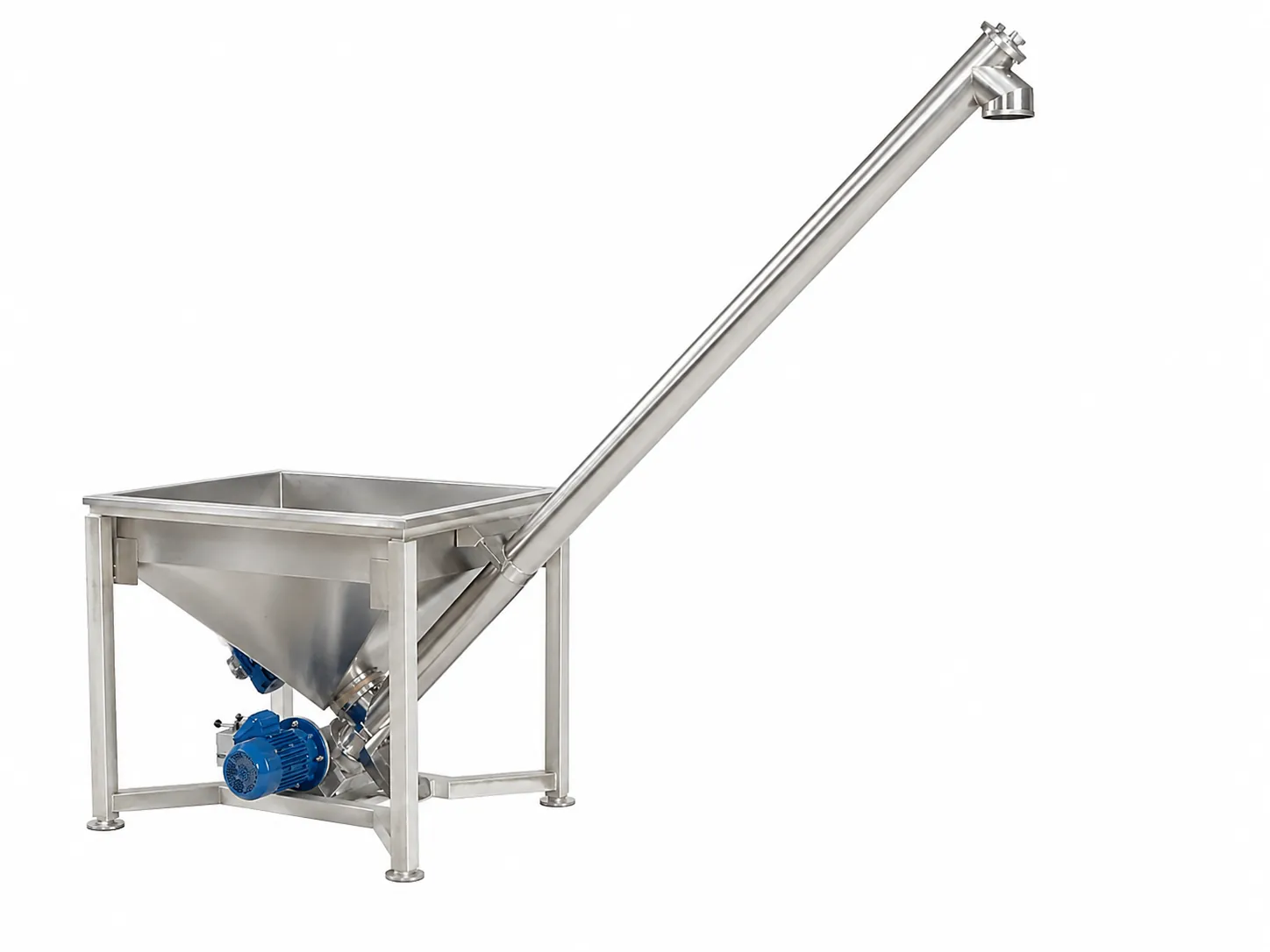

Kafgar Screw Elevators move coffee beans vertically from ground level to elevated hoppers, silos, or directly into your roasting and grinding equipment. A rotating helical blade inside a sealed tube carries the beans smoothly upward, keeping your product clean and your facility free of dust and spillage.
Each unit is manufactured from food-grade stainless steel and runs on a single gearbox motor, which keeps energy consumption low and noise to a minimum. We size the blade pitch specifically for coffee bean density to prevent jamming, even with oily dark-roasted beans. Custom heights are available from 1.5 meters up to 8 meters.
Key Features
- Enclosed helical blade system prevents dust and spillage
- Food-grade 304 stainless steel construction
- Gearbox-driven single motor, silent operation
- Custom heights from 1.5 m to 8 m
- Integrates with roasters, grinders, and silos
- Easy-access cleaning ports
- 2-year warranty on parts
Technical Specifications
Technical data for this equipment. Ask us for the configuration that fits your line.
Up to 1,000 Kg/h
Capacity
1.5 - 8 m
Elevation
0.75 - 3 KW
Motor Power
304 Stainless Steel
Material
2 Years
Warranty
