Kafgar
Coffee Roasters/Industrial Type

Industrial Type Commercial
Coffee Roasters

High-capacity roasting machines for large-scale production. Built with reinforced steel frames, industrial-grade burners, and automated control systems.

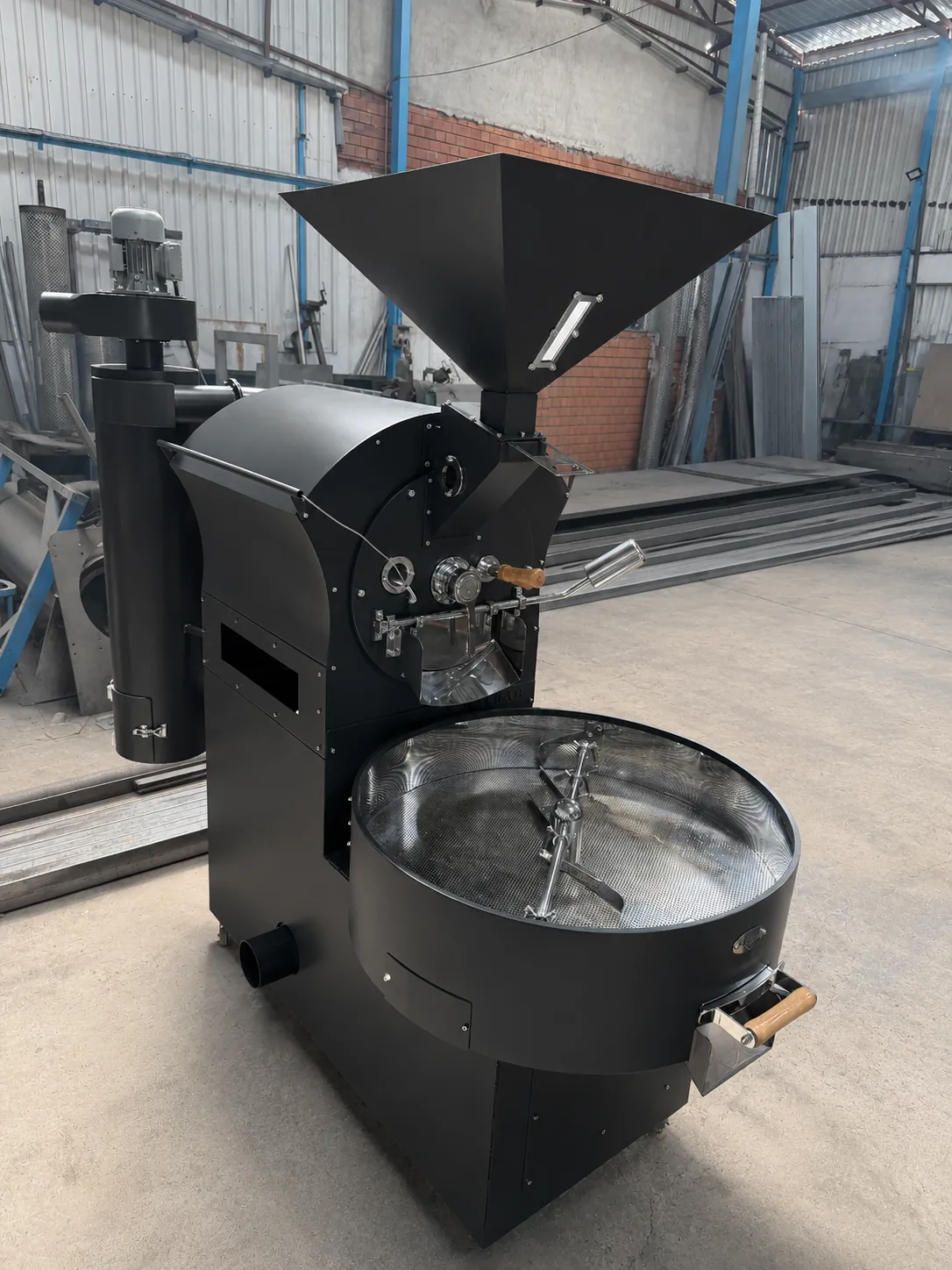

Kafgar KR-20 Coffee Roaster (20 kg)
20 kg

Kafgar KR-20 Coffee Roaster (20 kg)

The Kafgar KR-20 is the entry model of the Kafgar industrial range: a gas-fired drum coffee roaster with a 20 kg (44 lb) batch and up to 60 kg of output per hour in 12–16 minute cycles. It is sized for roasteries moving from shop type machines to their first production line. The housing is stainless steel. Heating is LPG, LNG or natural gas with 58 kW heat power. The machine has 4 motors, PLC control with drum speed control, a load hopper and an air-vacuum cooling chamber, and it is compatible with Artisan and Cropster. Standard supply is 380 V / 50–60 Hz (110 or 220 V on request) with a 0.55 kW power requirement. Plant integration: dimensions are 140x270x180 cm and the weight is 450 kg. A green bean loader, destoner and afterburner from Kafgar can be connected so the line can grow in stages. The KR-20 is CE marked under the EU Gas Appliances Regulation (EU) 2016/426.

View Details
Kafgar KR-30 Coffee Roaster (30 kg)
30 kg

Kafgar KR-30 Coffee Roaster (30 kg)

The Kafgar KR-30 is a gas-fired industrial drum coffee roaster with a 30 kg (66 lb) batch. In 12–16 minute cycles it roasts up to 90 kg of green coffee per hour, a common size for roasteries that supply wholesale customers and their own cafés from one line. Heating is LPG, LNG or natural gas with 62.5 kW heat power. The KR-30 has a stainless steel housing, 4 motors, PLC control with drum speed control, a load hopper and an air-vacuum cooling chamber, and it is compatible with Artisan and Cropster. Standard supply is 380 V / 50–60 Hz (110 or 220 V on request) with a 5.5 kW power requirement. Plant integration: the machine measures 200x250x220 cm and weighs 950 kg. It is usually installed with a green bean loader, a destoner and an afterburner, all built by Kafgar. The KR-30 is CE marked under the EU Gas Appliances Regulation (EU) 2016/426.

View Details

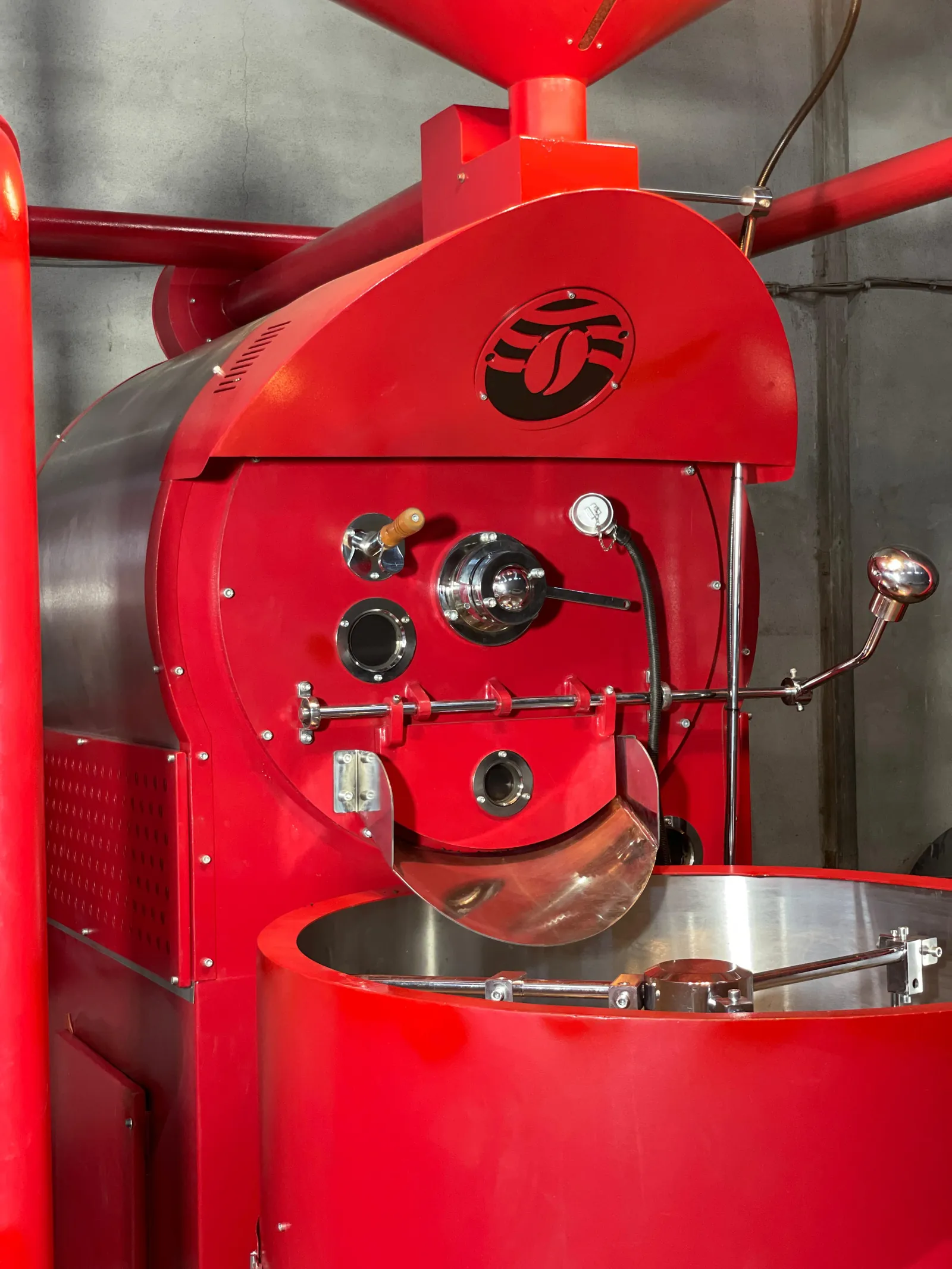

Kafgar KR-60 Coffee Roaster (60 kg)
60 kg

Kafgar KR-60 Coffee Roaster (60 kg)

The Kafgar KR-60 is a gas-fired industrial drum coffee roaster with a 60 kg (132 lb) batch and up to 180 kg of output per hour in 12–16 minute cycles. It is built for coffee plants with wholesale, private label and contract roasting volumes. Heating is LPG, LNG or natural gas with 93 kW heat power. The KR-60 has a stainless steel housing, 5 motors, PLC control with drum speed control, a load hopper and an air-vacuum cooling chamber, and it is compatible with Artisan and Cropster. Standard supply is 380 V / 50–60 Hz (110 or 220 V on request) with an 11 kW power requirement. Plant integration: dimensions are 280x350x280 cm and the weight is 1800 kg. At this size the roaster is normally fed by a green bean loader and followed by a destoner, with an afterburner on the exhaust. Kafgar plans and supplies these as one project. The KR-60 is CE marked under the EU Gas Appliances Regulation (EU) 2016/426.

View Details

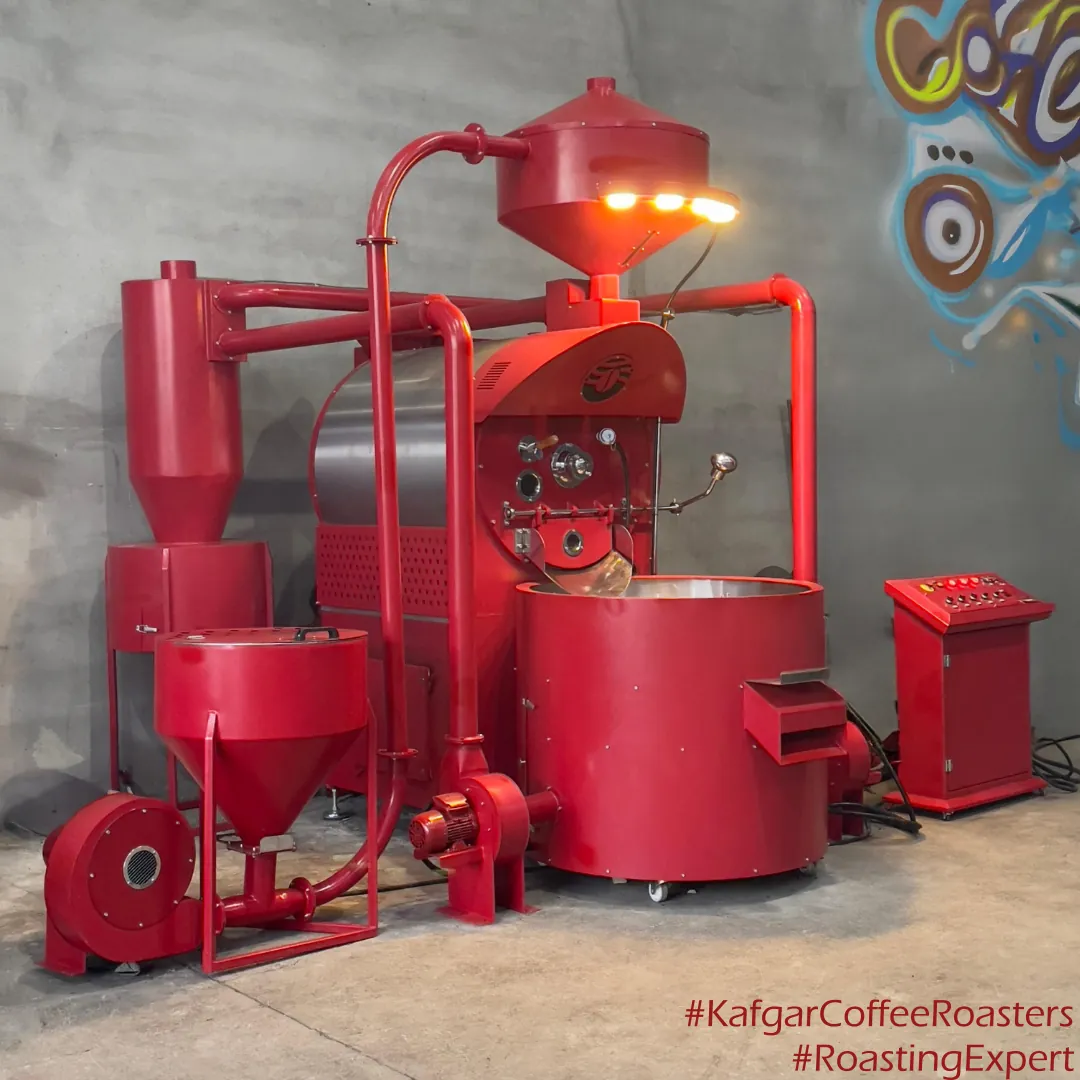

Kafgar KR-120 Coffee Roaster (120 kg)
120 kg

Kafgar KR-120 Coffee Roaster (120 kg)

The Kafgar KR-120 is a gas-fired industrial drum coffee roaster with a 120 kg (265 lb) batch. It roasts up to 360 kg of green coffee per hour in 12–16 minute cycles, for high-volume roasting plants and coffee producers. Heating is LPG, LNG or natural gas with 140 kW heat power. The KR-120 has a stainless steel housing, 5 motors, PLC control with drum speed control, a load hopper and an air-vacuum cooling chamber, and it is compatible with Artisan and Cropster. Standard supply is 380 V / 50–60 Hz (110 or 220 V on request) with an 18.5 kW power requirement. Plant integration: the machine measures 350x420x320 cm and weighs 3200 kg, so foundation, gas line and exhaust routing are planned with the plant layout. Kafgar supplies the loader, destoner and afterburner for the line; silos and packaging machines can be supplied as part of the same project. The KR-120 is CE marked under the EU Gas Appliances Regulation (EU) 2016/426.

View Details
Kafgar KR-240 Coffee Roaster (240 kg)
240 kg

Kafgar KR-240 Coffee Roaster (240 kg)

The Kafgar KR-240 is a gas-fired industrial drum coffee roaster with a 240 kg (529 lb) batch and up to 720 kg of output per hour in 12–16 minute cycles. It is built for coffee producers and large roasting plants that run several shifts a day. Heating is LPG, LNG or natural gas with 140 kW heat power. The KR-240 has a stainless steel housing, 5 motors, PLC control with drum speed control, a load hopper and an air-vacuum cooling chamber, and it is compatible with Artisan and Cropster. Standard supply is 380 V / 50–60 Hz (110 or 220 V on request) with a 12 kW power requirement. Plant integration: dimensions are 200x400x240 cm and the weight is 5000 kg. The KR-240 is planned as part of a complete line with green coffee intake, loading, destoning, an afterburner and roasted coffee handling; Kafgar prepares the layout with the customer. It is CE marked under the EU Gas Appliances Regulation (EU) 2016/426.

View Details
Kafgar KR-500 Coffee Roaster (500 kg)
500 kg

Kafgar KR-500 Coffee Roaster (500 kg)

The Kafgar KR-500 is the largest roaster Kafgar builds: a gas-fired industrial drum coffee roaster with a 500 kg (1102 lb) batch for high-volume roasting plants. It roasts 1,500–2,000 kg of green coffee per hour in 12–18 minute cycles. The drum is double-walled ST52 steel, heated by a fully modulated Premix burner (290–600 kW) running on LPG, LNG or natural gas. A Siemens PLC touchscreen runs multi-step roast profiles, and the drum and fan have independent inverter drives. Cooling uses a suction fan, dual agitator arms and a perforated stainless cooling tray. An external cyclone chaff collector and a water-injection safety system are part of the design. Roast data can be logged in Artisan or Cropster. Plant integration: the KR-500 measures 850x420x480 cm and weighs 12000 kg. Electrical supply is 380 / 400 / 480 V, 3-phase, 50–60 Hz, with a 45–55 kW power requirement. Foundation, gas supply, exhaust and material handling are planned together with the plant layout. The KR-500 is CE marked under the EU Gas Appliances Regulation (EU) 2016/426.

View Details

Private Label (OEM)

Your brand, built by Kafgar: industrial roasters from 20 to 500 kg with your logo, colours and nameplate.
